Product introduction

ASTM A36 Steel Channel - Galvanized or Primed

ASTM A36 steel channel is hot-rolled, low carbon steel section with good properties including welding, machinability and ductility. A36 structural channel have two types of sizes: UPN & UPE - tapered flanges and parallel flanges respectively. If you can't find the specific size in the table below, bespoke channel dimensions are available.

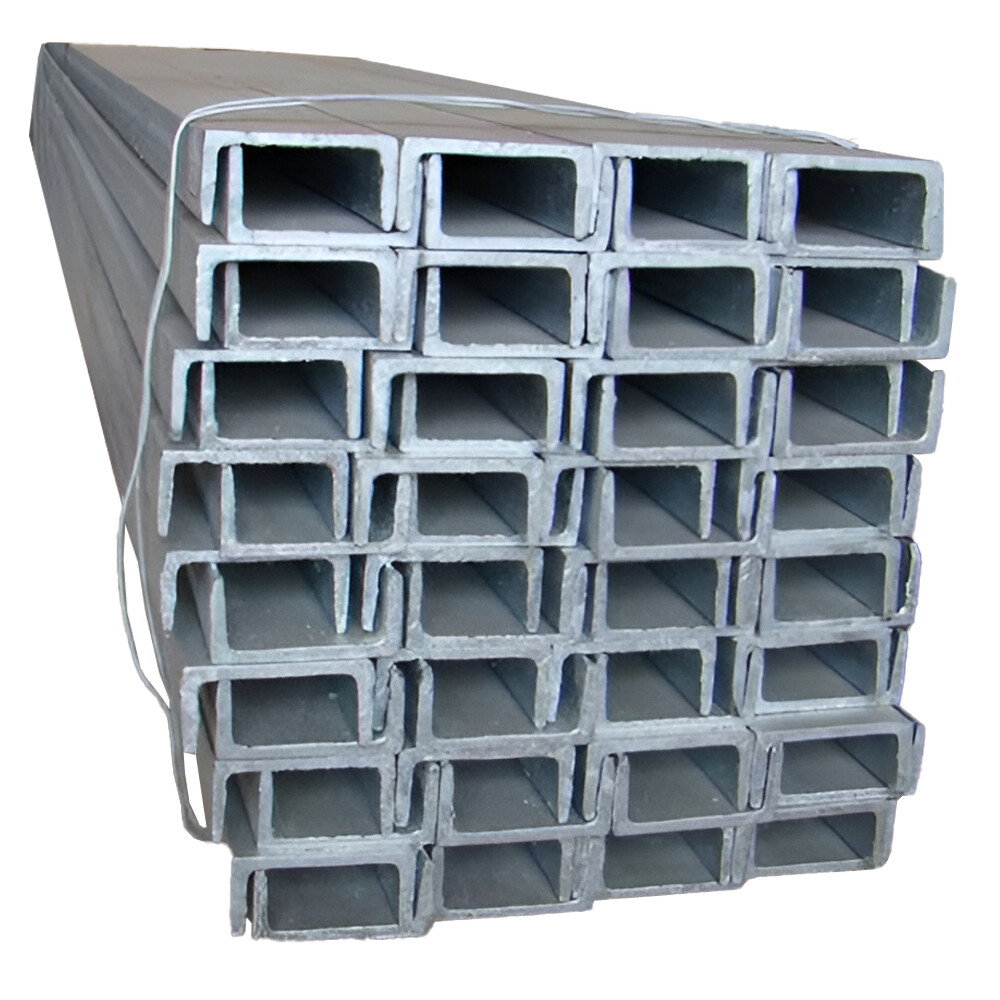

ASTM A36 steel c channel

ASTM A36 mild steel channel could be galvanized or primed to add a layer of protective coating to resist environment or weather corrosion. The specific zinc coating can be ordered depending on your requirements.

Applications:

• Building or construction supporting components.
• Framing supports for truck, trailer, equipment.
• Ceiling channel system.
• Everyday uses like worktable.

Product description:

• Item: ASTM A36 Steel Channel.
• Dimensions: UPN & UPE.
• Web Width: 80 - 200 mm.
• Web Thickness: 6 - 8.5 mm (UPN) & 4.5 - 5.2 mm (UPE).
• Flange Width: 45 - 75 mm (UPN) & 40 - 76 mm (UPE).
• Flange Thickness: 8 - 11.5 mm (UPN) & 7.4 - 9.0 mm (UPE).
• Length: 3 m, 6 m, or as required.
• Surface Treatment: non-treatment, galvanised or primer.

• Note: Special channel sizes are available on order.

•


Technical data

A36 steel channel chemical composition

NOTE: Copper content is available when your order is specified.

A36 steel channel mechanical property

ASTM A36 steel u channel sizes

ASTM A36 steel c channel sizes
